Product Overview & Key Features

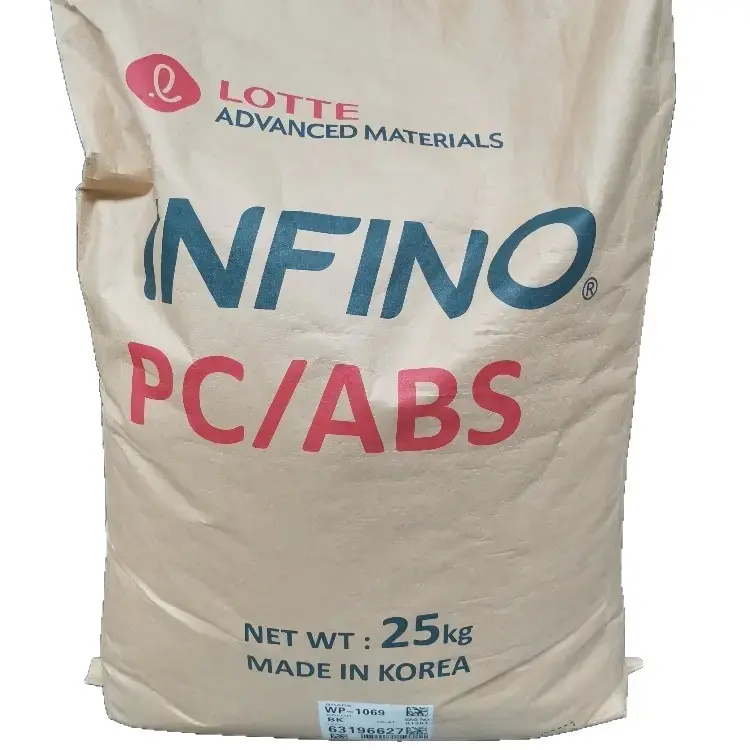

- Manufacturer & Grade: Lotte Chemical Infino® NH-1015 PC/ABS is a high-performance engineering plastic alloy raw material produced by Lotte Chemical.
- Basic Material Properties: This product is a polycarbonate and acrylonitrile-butadiene-styrene blend (PC/ABS) alloy material with opaque pellet appearance, possessing favorable comprehensive physical-mechanical properties and flame-retardant characteristics.
- Core Performance Advantages:
- Outstanding Flame Retardancy: Meets UL 94 V-0, 5VB, and 5VA multi-level flame retardant standards, suitable for industrial and electrical/electronic applications with strict fire safety requirements.
- Balanced Mechanical Strength: Features a tensile yield strength of 61.8 MPa and a flexural strength of 86.3 MPa, along with a notched Izod impact strength of 588 J/m, combining rigidity with impact toughness.
- Stable Thermal Performance: Features a Vicat softening point of 98.0 °C, with relative temperature indices (RTI) for electrical, impact, and tensile directions reaching 90.0 °C, 85.0 °C, and 90.0 °C respectively.
- Compatible Processing Technology: This grade is primarily adapted for injection molding processes. Backed by favorable fluidity (melt flow rate of 24 g/10min) and molding stability, it is widely applied in the mass production of complex structural components.
Technical Specifications
Physical Properties
| Physical Property | Test Value | Test Unit | Test Standard |
| Density | 1.18 | g/cm³ | ASTM D792 |
| Melt Flow Rate, Mass10 kg, 220 °C, Condition E 0 | 24 | g/10min | ASTM D1238 |
Mechanical Properties
| Mechanical Property | Test Value | Test Unit | Test Standard |
| Tensile Strength, Yield | 61.8 | MPa | ASTM D638 |
| Flexural Strength | 86.3 | MPa | ASTM D790 |
| Flexural Modulus | 2400 | MPa | ASTM D790 |
| Izod Impact Strength, Notched0, 3.17 mm | 588 | J/m | ASTM D256 |
Thermal Properties
| Thermal Property | Test Value | Test Unit | Test Standard |
| Vicat Softening Point | 98 | °C | ISO R306 |
| RTI, Electrical | 90 | °C | — |
| RTI, Impact | 85 | °C | — |
| RTI, Tensile | 90 | °C | — |
| Flame Class Rating0, 0, 0.03 in, 1.5 mm | V-0 | — | UL 94 |
| Flame Class Rating0, 0, 3 mm, 0.03 in | 5VB | — | UL 94 |
| Flame Class Rating0, 0, 2 mm, 0.03 in | 5VA | — | UL 94 |
Disclaimer: The technical specifications for Lotte Chemical Infino® NH-1015 PC/ABS presented herein are derived from data issued by Lotte Chemical or certified third-party testing institutions. While we have made every effort to ensure the accuracy of the information provided, we assume no liability for any consequences arising from the use of Infino® NH-1015 PC/ABS based on these data. Given the variables involved in processing conditions, we strongly recommend conducting thorough trials of Infino® NH-1015 PC/ABS under your specific operational environment prior to final material selection.
Applications & Processing Guidelines
- Recommended Application Scenarios / End Products:
- Electrical & Electronics Field: Power adapter housings, low-voltage circuit breaker components, server and router structural parts, and other electronic enclosures requiring high flame-retardant standards.
- Office & Household Equipment: Internal and external support components for printers and copiers, alongside heat-resistant parts for small home appliances demanding dual criteria in mechanical strength and fire safety.
- Operational Processing Essentials:
- Drying Treatment: PC/ABS resin exhibits hygroscopic properties and must undergo sufficient drying prior to processing to prevent surface silver streaks or bubble defects on molded parts.
- Melt Flow and Temperature Control: This grade features a melt flow rate of 24 g/10min under 220 °C / 10 kg conditions, showing favorable fluidity. Multi-stage injection temperature settings and mold designs should properly match molding temperatures and cooling cycles with its 98.0 °C Vicat softening point to prevent excessive internal stress.
Logistics, Packaging & Compliance
- Packaging Specifications: Standard industrial packaging consists of 25kg moisture-proof composite paper bags or inner plastic film linings, satisfying moisture-proof and breakage-resistance requirements during long-distance ocean and land transport.
- Hazardous Material Attributes: This product belongs to non-hazardous chemicals, maintaining stable properties under normal storage and transport conditions, and does not fall under dangerous goods transportation categories.
- Routine Delivery Lead Time Range: Spot inventory can typically be arranged for dispatch within 3 to 7 working days following order confirmation; custom or futures orders depend on specific production scheduling (generally 2 to 4 weeks).
- Maritime and Land LCL/FCL Shipping Instructions: Supports Full Container Load (FCL) or Less than Container Load (LCL) sea and land shipping services, with palletized packaging available to accommodate customer requirements.
- Compliance Certifications and Declarations:
- Official Technical Data Sheets (TDS), Material Safety Data Sheets (MSDS), and Certificates of Analysis (COA) can be provided.
- Complies with international environmental and supply chain compliance requirements, supporting REACH regulations and RoHS directive declarations to align with the ESG and sustainability standards of global industrial clients.
Frequently Asked Questions (FAQs)
Q1: Must Lotte Chemical Infino® NH-1015 PC/ABS be dried prior to injection molding?
A: Yes. Because the PC/ABS alloy matrix possesses moisture-absorbing characteristics, excessively high raw material moisture content can easily induce hydrolysis during high-temperature injection molding, resulting in surface silver streaks, bubbles, or diminished mechanical properties. It is recommended to employ dehumidifying drying equipment for standard pre-heating and drying prior to processing.
Q2: What standards encompass the core flame-retardant advantages of this grade?
A: This product possesses superior fire-retardant properties. Under UL 94 standard testing, it attains V-0, 5VB, and the highest-grade 5VA flame retardancy certifications at varying thicknesses, making it highly suitable for industrial enclosures and structural parts facing strict regulatory requirements for electrical and electronic fire safety.
Q3: How can official TDS, MSDS, and compliance documentation for this grade be acquired?
A: You can directly submit a data request through our independent site inquiry system. TaiKuo New Materials will provide complete official technical documents (TDS), MSDS, alongside RoHS and REACH compliance declarations to assist your project in completing regulatory reviews.
Q4: Are samples supported for pilot-scale or trial evaluations prior to bulk procurement?
A: Yes, we support this. We understand that high-polymer material performance validation prior to actual mass production is critical; therefore, we can provide compliant laboratory testing samples for industrial clients with genuine procurement demands, though sample material costs and freight charges are to be borne by the customer. Specific sample application guidelines and logistics arrangements can be coordinated directly with our overseas sales engineers.
